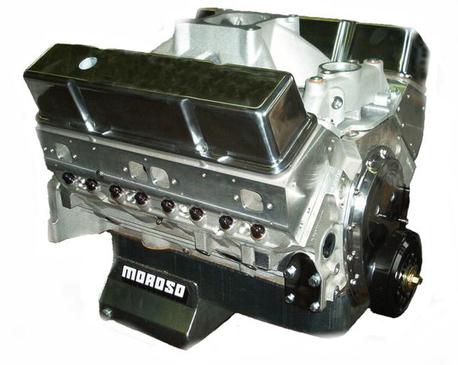

427 SBC
Aluminum Block
427/800HP
$29,900
Our small block version Strip Destroyer engine begins with a Brodix aluminum small block that is modified for 55mm roller cam bearings, machined for .903 lifter bores, PLUS the HIP (high pressure casting) process to assure block density. A raised 9.0 deck height, 4.124" bore, and 350 mains round out this high quality block. We top it off with a set of Brodix 18X cylinder heads and a Brodix HV 1800 intake manifold. Inside this destroyer engine is a Callies Magnum crankshaft, Callies Ultra H rods, and RaceTec custom pistons. This custom build along with a solid roller custom ground camshaft will give you a ground pounding 800HP with room to grow, and make you a real contender at the dragstrip or street race!
 | ||||
Brodix 9.0 Tall deck aluminum block
Callies 4.0" stroke/350 mains Magnum Crank
Callies Ultra H Beam 6.0" Rods
Clevite CB 633 HXNK Coated Rod Bearings
Clevite MS 909 HXK Main Bearings
RaceTec Lateral Gas Port Custom Piston with Rail Support W/per application Total Seal Rings
Comp Cams 55mm Nitrous Solid Roller Custom Ground 4/7 Swap Cam
Crower Solid Roller Lifter for .903" Lifter Bore Tall Deck W/Hippo
Brodix 18X Series Cylinder Heads
T & D Shaft Rocker System with 40/60 Spacing
Brodix HV 1800 Intake Manifold
4150 Carb (sized to match application)
Moroso 8qt Drag Style Oil Pan
Moroso Billet Oil Pump
6.325 Damper
MSD Tall Deck Distributor, Crank Trigger
Moroso Vacuum Pump, Pulleys, Lines, and Drive Kit
Complete Rotating Assembly Balanced
Individually Tested and Dyno Tuned with Dyno Sheet Provided
Optional Upgrades (at higher cost)
Brodix 9.5 Tall Deck block (for Nitrous application engines)
O-Ring Cut Block (for Nitrous application engines)
Cut Cylinder Heads for Reciever Groove (for Nitrous application engines)
Callies Enforcer Rod (for Nitrous application engines)
Dominator Carb
includes carb and ignition
Have a question? Give us a call!
Components / Parts Subject To Change Due To Availability.
